Description
DeWalt DCH614B Description
60V MAX* 1-3/4 IN. SDS MAX BRUSHLESS COMBINATION ROTARY HAMMER (TOOL ONLY) The 60V MAX* 1-3/4 in. SDS Max Brushless Combination Hammer is a midweight, high-performance rotary hammer that is powered by a brushless motor and durable German engineered mechanisms. The Brushless Combination Rotary Hammer delivers 10.5 Joules of impact energy for fast drilling and chipping, even in the hardest concrete. Constant-speed electronics allow the tool to maintain speed under load, while the patented E-CLUTCH® system protects the user in bind-up situations by stopping the rotation of the bit. The midweight design makes it ideally suited for high-performance, horizontal serial drilling for #5 - #8 rebar, dry coring up to 4 in., chipping in any upper to lower wall and bushing applications. The SHOCKS Active Vibration Control® system reduces vibration felt by the user at the handles, compared to rotary hammers without this feature. It is equipped with WIRELESS TOOL CONTROL™, which allows the user to link the tool to the DCV585 60V MAX* dust extractor for remote extractor activation. This tool comes Tag Ready™ so users and companies can attach the DEWALT Tag™ and track its location virtually anywhere via the Tool Connect™ app.
DeWalt DCH614B Includes
- (1) DCH614 60V MAX* Combination rotary hammer
- (1) Atomic undercut bit drilling
DeWalt DCH614B Features
- 10.5 Joules of impact energy for fast drilling and chipping, even in the hardest concrete.
- E-CLUTCH system protects the user in bind-up situations by stopping the rotation of the bit.

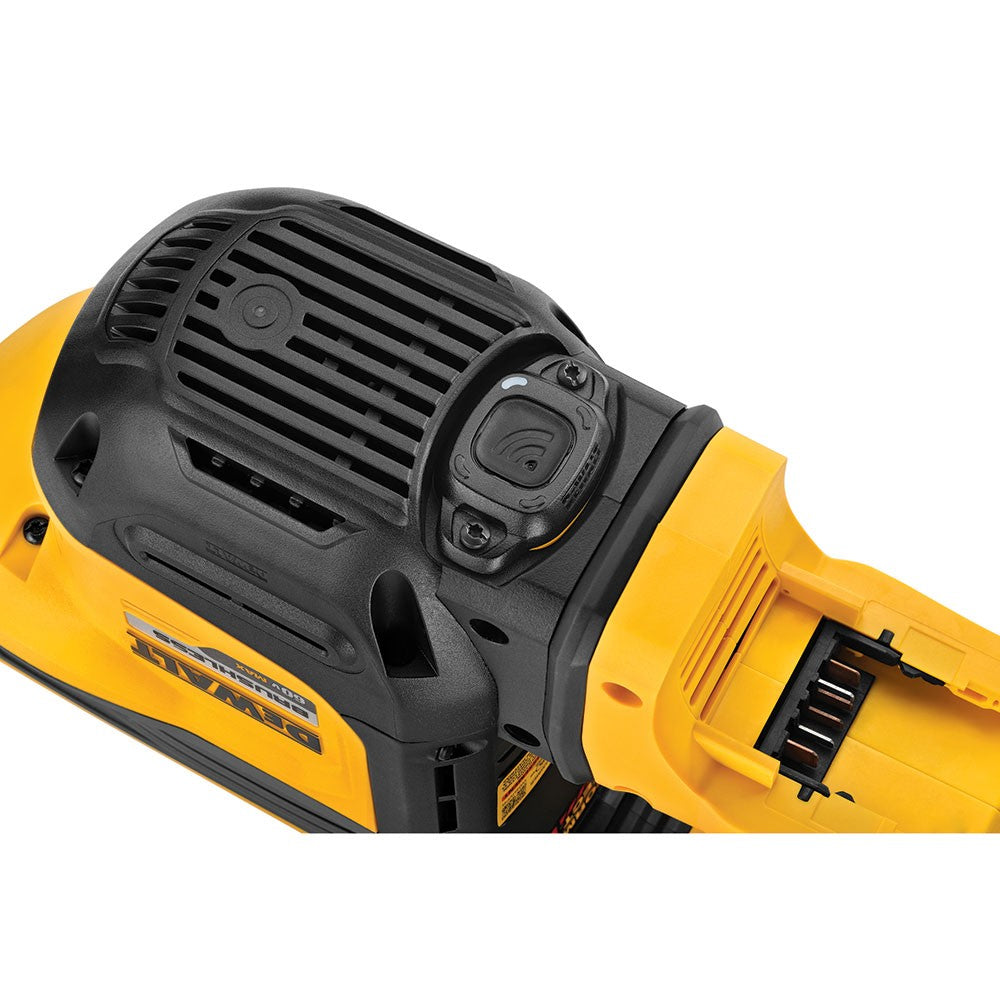

- Equipped with integrated WIRELESS TOOL CONTROL, which allows the user to link the tool to the DCV585 60V MAX* dust extractor for remote extractor activation.
- The SHOCKS Active Vibration Control system reduces vibration felt by the user at the handles, compared to rotary hammers without this feature.
- 7-position, variable-speed control for precision hole placement, chipping, and drilling with Atomic Undercut bits.
- Brushless motor and durable German engineered mechanisms.
- Constant-speed electronics allow the tool to maintain speed under load.
- Tag Ready so users and companies can attach the DEWALT Tag and track its location virtually anywhere via the Tool Connect app.
- The midweight design makes it ideally suited for high-performance, horizontal serial drilling for #5 - #8 rebar, dry coring up to 4in., chipping in any upper to lower wall and bushing applications.
DeWalt DCH614B Specifications
| BLOWS/MIN | 1450- 2900 BPM |
| E-CLUTCH(TM) | E-CLUTCH |
| IMPACT ENERGY | 10.5 JOULES |
| MAX. DIAMETER CORE | 4 IN |
| NO LOAD SPEED | 190 - 380 RPM |
| OPTIMAL CONCRETE DRILLING | 5/8 - 1 1/4 IN |
| TOOL HEIGHT | 909 IN |
| TOOL LENGTH | 20.7 IN |
| TOOL WEIGHT | 15 LBS |
| VIBRATION CONTROL | SHOCKS |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
