Description
INCLUDES:

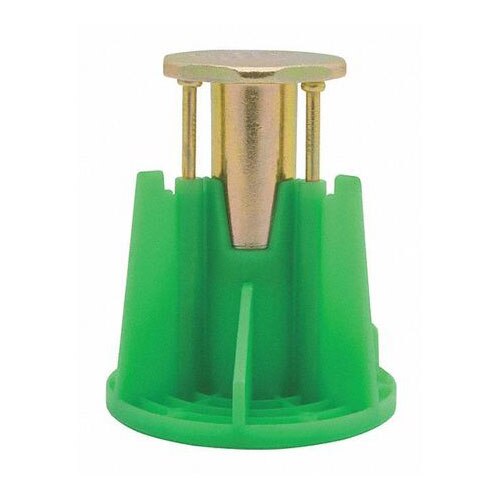

• (100) Wood-Knocker II Insert Green 3/8"
FEATURES:
• Fast and simple to install, low installed cost
• Color coded by size for simple identification
• Bang-It can be installed in lower flute of steel deck as little as 1.5" topping thickness
• Wood-Knocker can be installed in wood form pours only 3.5" thick
• Hex head does not rotate when set
• Insert design allows for full thread engagement
• All sizes suitable for tension and shear loading
SPECIFICATIONS:
• Color Finish: Green
• Rod Size - Hangers: 3/8"-16
• Rod Hanger Type: Vertical
• Head Diaameter: 2-3/8"
• Shank Length: 2"
• Use With: Hammer Mfr. No. DWHT51054
• Screw Size: 3/8"-16
• Max. Load Capacity: 4820 lbs
• Material Application: Concrete, Wood
• Fastener Finish: Zinc Plated
Rod hangers are designed to prevent snapping during installation while also ensuring a strong bond between screw and connector. Dewalt Engineered By Powers Cast-in-Place Threaded Rod Anchor include characteristics like: Screw Size: 3/8"-16.
