Description
INCLUDES:
• (100) Head Drive Pins
FEATURES:
• Fasten into concrete
• Knurled shank increase performance
• Plastic flute providing guidance during driving operation
SPECIFICATIONS:
• Shank Length: 1/2" (K)
• Shank Diameter: 0.145"
• Caliber Loads: 0.22/0.27
• Head Diameter: 0.3"
• Shank Style: Knurled

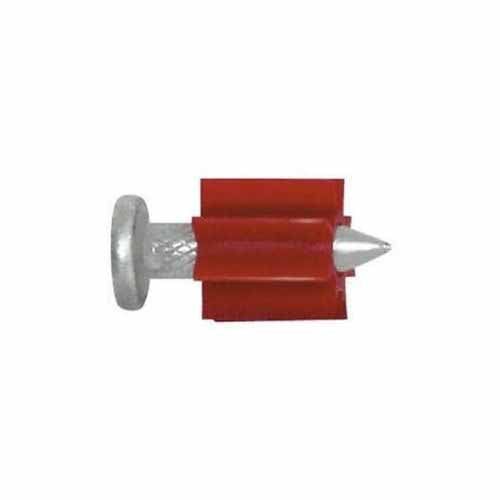

Drive pins with a .300" head are designed for permanently fastening a fixture to concrete, some types of concrete block, and A36 or A572 structural steel. The pins are formed with a 0.145" diameter shank in various lengths, and a specially designed point to allow proper penetration into typical base materials. Knurled shank designs are available to increase performance in steel base materials. A plastic flute is mounted over the point to retain the drive pin in the fastener guide of the tool providing guidance during the driving operation.
• (100) Head Drive Pins
FEATURES:
• Fasten into concrete
• Knurled shank increase performance
• Plastic flute providing guidance during driving operation
SPECIFICATIONS:
• Shank Length: 1/2" (K)
• Shank Diameter: 0.145"
• Caliber Loads: 0.22/0.27
• Head Diameter: 0.3"
• Shank Style: Knurled
Drive pins with a .300" head are designed for permanently fastening a fixture to concrete, some types of concrete block, and A36 or A572 structural steel. The pins are formed with a 0.145" diameter shank in various lengths, and a specially designed point to allow proper penetration into typical base materials. Knurled shank designs are available to increase performance in steel base materials. A plastic flute is mounted over the point to retain the drive pin in the fastener guide of the tool providing guidance during the driving operation.
