Description
Powers Fasteners 7415SD2-PWR Description

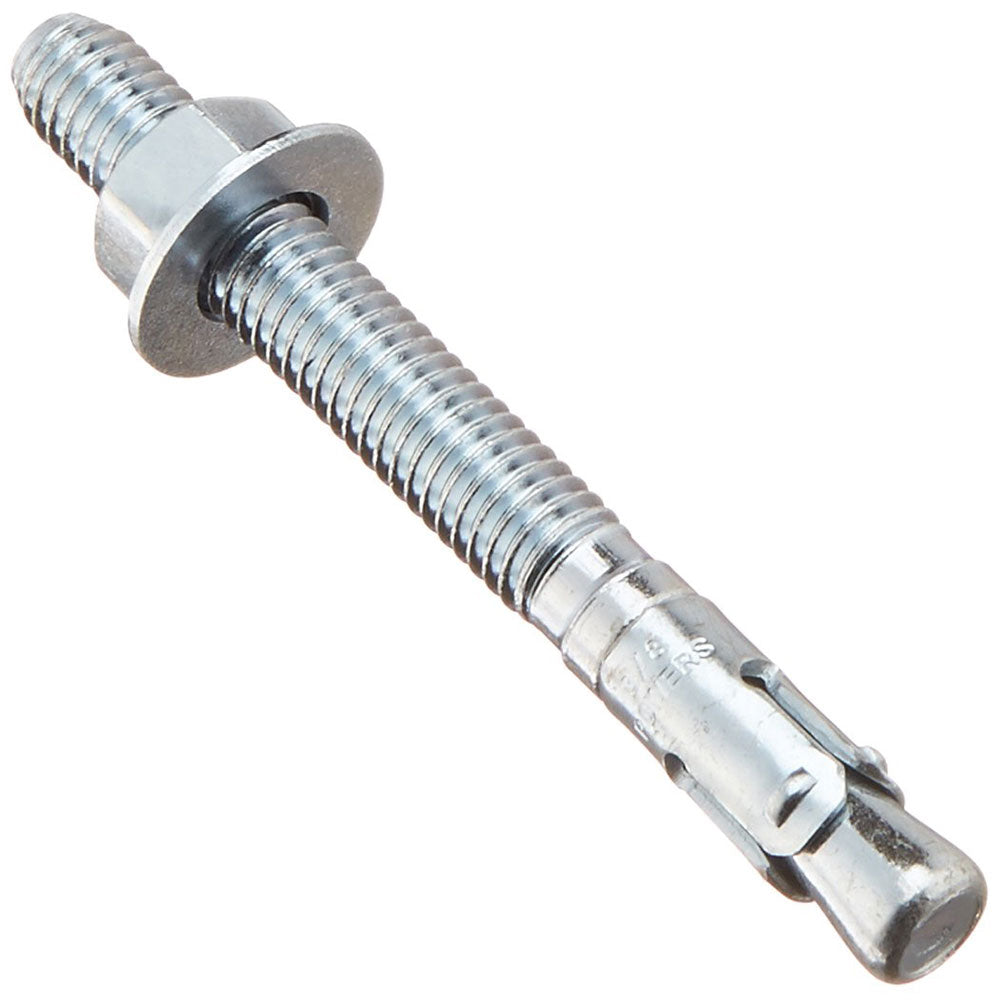

The Power-Stud + Strength Design anchors are fully threaded, torque-controlled, wedge expansion anchors that are designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete, structural sand-lightweight concrete and concrete over metal deck. The SD2 is manufactured with a zinc plated carbon steel body and stainless steel expansion clip for premium performance.
Powers Fasteners 7415SD2-PWR Includes
- (50) Wedge Expansion Anchors
Powers Fasteners 7415SD2-PWR Features
- International Code Council, Evaluation Service (ICC-ES), ESR-2502 for cracked and uncracked concrete
- Code Compliant with the 2015, IBC, 2015 IRC, 2012 IBC, 2012 IRC, 2009 IBC, and 2009 IRC
- Tested in accordance with ACI 355.2 and ICC-ES AC193 for use in structural concrete under the design provisions of ACI 318-14 Chapter 17 or ACI 318-11/08 Appendix D
- Evaluated and qualified by an accredited independent testing laboratory for recognition in cracked and uncracked concrete including seismic and wind loading (Category 1 anchors)
- FM Global (Factory Mutual) - File No. 3033795, 3/8 and 1/2 diameters Pipe hanger components for automatic sprinkler systems
- Underwriters Laboratories (UL Listed) - File No. EX1289 - See listing
- Consistent performance in high and low strength concrete
- Nominal drill bit size is the same as the anchor diameter
- Anchor can be installed through standard fixture holes
- Anchor design allows for follow-up expansion after setting under tensile loading
Powers Fasteners 7415SD2-PWR Specifications
Material | Carbon Steel / Stainless Steel |
Diameter | 3/8" |
Length | 3-3/4" |
Finish | Zinc Plated |
