Description
Powers Fasteners 7444SD2-PWR Description

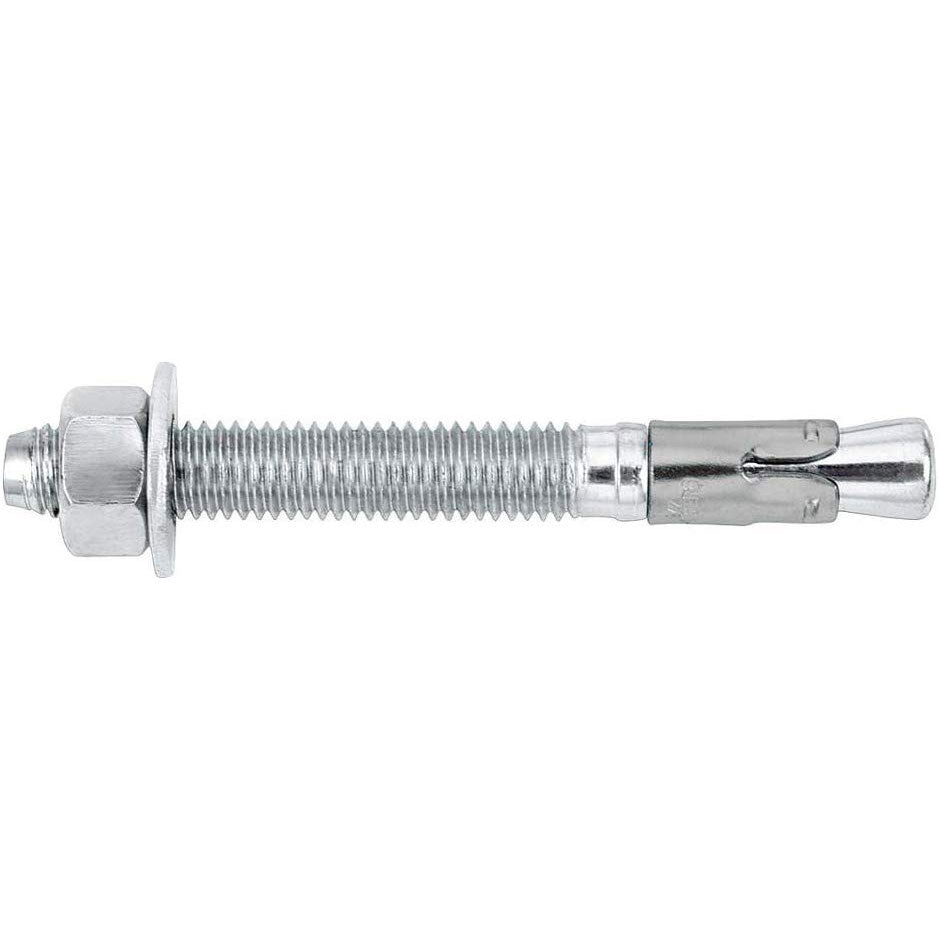

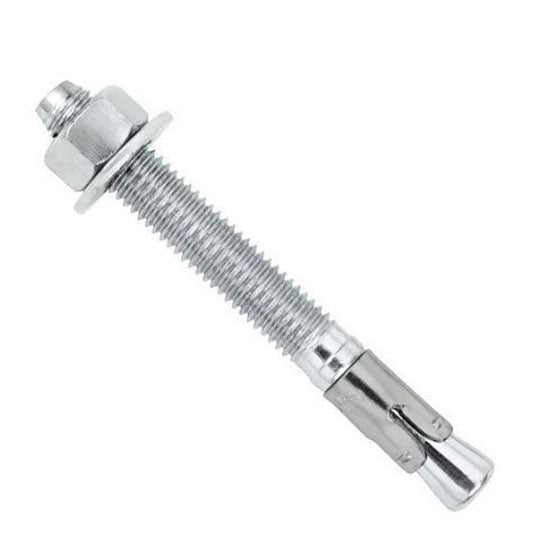

Powers 7444SD2, 3/4" x 6-1/4" Power-Stud+ SD2 Wedge Anchors with Stainless Clip, 20 - Box The Power-Stud + Strength Design anchors are fully threaded, torque-controlled, wedge expansion anchors that are designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete, structural sand-lightweight concrete and concrete over metal deck. The SD2 is manufactured with a zinc plated carbon steel body and stainless steel expansion clip for premium performance.
Powers Fasteners 7444SD2-PWR Includes
- (20) Anchors
Powers Fasteners 7444SD2-PWR Features
- Consistent performance in high and low strength concrete
- Nominal drill bit size is the same as the anchor diameter
- Anchor can be installed through standard fixture holes
- Length ID code and identifying marking stamped on head of each anchor
- Anchor design allows for follow-up expansion after setting under tensile loading
Powers Fasteners 7444SD2-PWR Specifications
| Product Type | Wedge Expansion Anchor |
| Material | Carbon Steel / Stainless Steel |
| Diameter | 3/4" |
| Length | 6-1/4" |
| Finish | Zinc Plated |
| Thread Length | 4" |
| Carbide Bit Size | 3/4" x 12" |
| Code Listings | ICC-ES ESR 2502 Concrete |
