Description

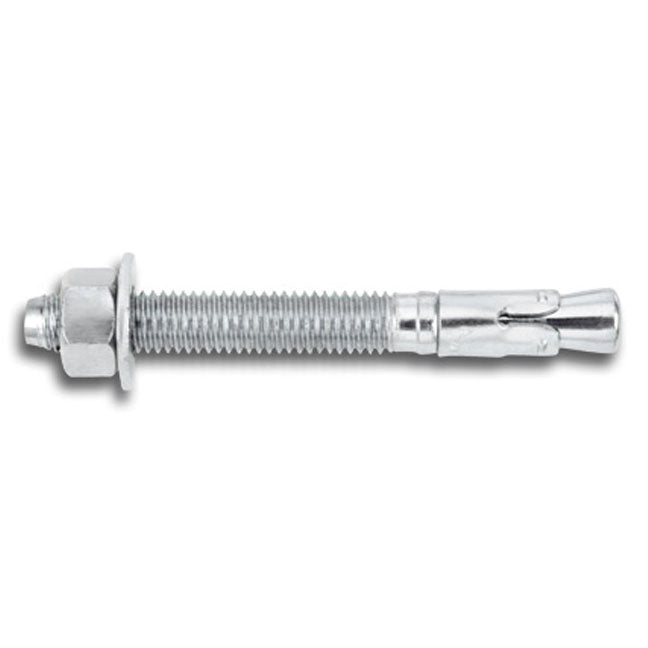

Powers Fasteners 7452SD1-PWR Description
The Power-Stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete, structural sand-lightweight concrete and concrete over metal deck. The anchor is manufactured with a zinc plated carbon steel body and expansion clip. Nut and washer are included.
Powers Fasteners 7452SD1-PWR Includes
- (10) Wedge Expansion Anchors
- (1) Nut and Washer
Powers Fasteners 7452SD1-PWR Features
- Consistent performance in high and low strength concrete
- Nominal drill bit size is the same as the anchor diameter
- Anchor can be installed through standard fixture holes
- Length ID code and identifying marking stamped on head of each anchor
- Anchor design allows for follow-up expansion after setting under tensile loading
Powers Fasteners 7452SD1-PWR Specifications
| Material | Steel |
| Diameter | 7/8" |
| Length | 8" |
| Thread Length | 4-3/4" |
| Thread Size | 7/8"-9 |
| Min. Embedment | 3-1/2" |
| Embedment In Concrete | 3-1/2" |
| ICC Approved for Cracked Concrete | Yes |
| ICC Approved for Un-Cracked Concrete | Yes |
