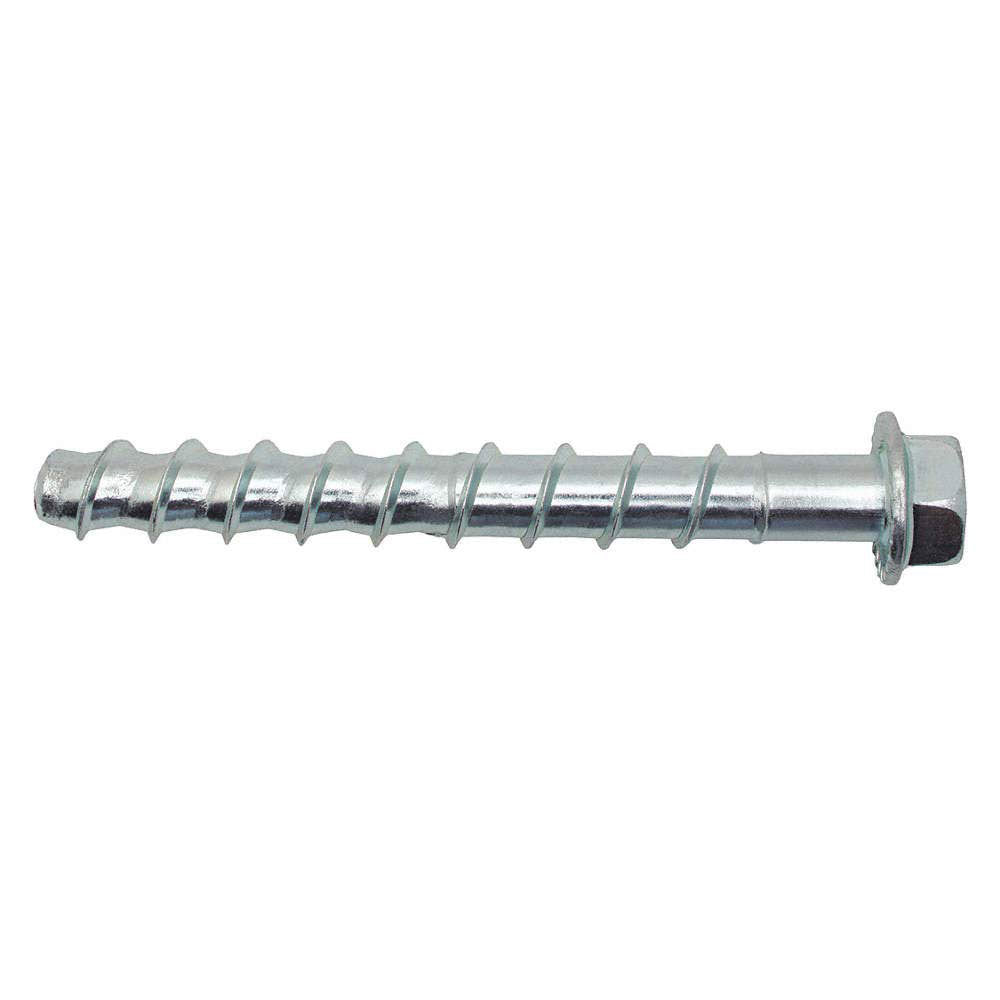

Powers Fasteners PFM1411300 Hex Washer Zinc Fastener Screw Anchor, 3/8"x 5" 50 Pack


Price:
Sale price$ 88.09 Regular price$ 106.59
Stock:
Only 1 unit left

Description

Powers Fasteners PFM1411300 Description

High-strength heavy-duty one-piece Screw Anchors are for use in both cracked and uncracked concrete. They can be easily installed with standard-size drill bits, and are removable, for temporary anchoring. Vibration- and shock-resistant. For use in fastening conveyors, pallet racking, racking guards, motors, bracing, piping, ladders, fencing, beams, angles, or dimensional lumber to concrete or masonry. This listing is for pkg. of 50. Technical Specification Item Screw Anchor Anchor Screw Type Screw Anchor Anchor Screw Head Style Hex Washer Anchor Material Steel Material Grade Not Graded Fastener Finish Zinc Plated Anchor Dia. 3/8 Anchor Length 5 Seismic Approved Yes ICC Approved for Cracked Concrete Yes ICC Approved for Un-Cracked Concrete Yes Min. Embedment 1-1/2 Edge Distance 1-1/2 Drill Bit Size 3/8 Max. Work Thickness 3-1/2 Ultimate Shear (Lb.) 6930 Ultimate Tension (Lbs.) 11, 945 Application Racking, Shelving, Material Handling, Fencing, Glazing, Curtain Wall

Powers Fasteners PFM1411300 Includes

  • (1) Hex Washer Zinc Fastener Screw Anchor, 3/8"x 5" 50 Pack

Powers Fasteners PFM1411300 Features

  • Designed for standard ANSI tolerance drill bits
  • Patented thread design offers low installation torque
  • Tough threads for tapping high strength concrete
  • Ratchet teeth on underside of hex washer head lock against the fixture
  • Can be installed closer to the edge than traditional expansion anchors
  • Fully removeable and reinstallable in same hole
  • Fast installation with powered impact wrench
  • Diameter, length and identifying marking stamped on head of each anchor
  • One-piece, finished head design

Powers Fasteners PFM1411300 Specifications

Product Type Screw Anchor
Material Carbon Steel
Diameter 3/8"
Length 5"
Head Type Hex
Finish Zinc Plated
Driver Size 9/16"
